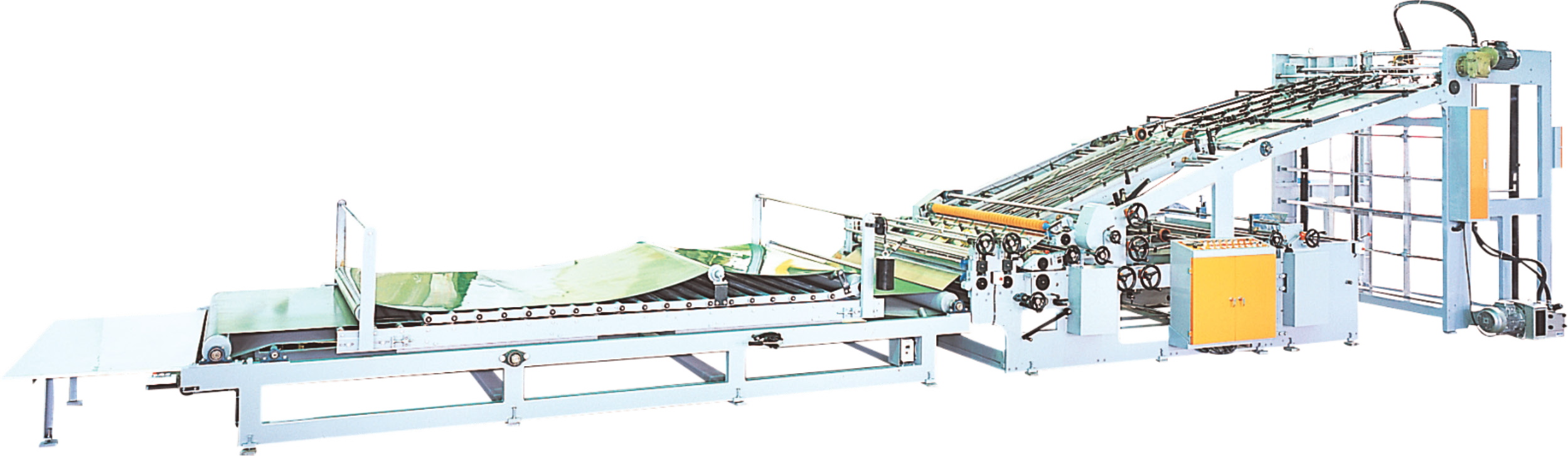

Mașină de laminat de format mare PAMA Chain Type








    Prin utilizarea acestui formular sunteți de acord cu stocarea și manipularea datelor dvs. pe acest site web.



    Mașină de laminat de format mare

    Product Description

    Producător: PAMA

    Model: Chain Type


    SPECIFICATIONS MF 1100 S MF 1300 S MF 1450 S MF 1600 X
    Max Sheet W x L 1100 x 1100 mm 1300 x 1100 mm 1450 x 1100 mm 1600 x 1300 mm
    Min Sheet W x L 350 x 350 mm 350 x 350 mm 350 x 350 mm 450 x 450 mm
    Substrate Min Wt. / Max Wt. 300 / 800 g/m2 300 / 800 g/m2 300 / 800 g/m2 300 / 800 g/m2
    Max Thickness 10 mm 10 mm 10 mm 10 mm
    Litho Min Wt. / Max Wt. 180 / 800 g/m2 180 / 800 g/m2 180 / 800 g/m2 180 / 800 g/m2
    Accuracy ± 1.5 mm ± 1.5 mm ± 1.5 mm ± 1.5 mm
    Mechanical Speed 6000 Sheets/h 6000 Sheets/h 6000 Sheets/h 6000 Sheets/h
    Production Speed 4800 Sheets/h 4800 Sheets/h 4800 Sheets/h 3500 Sheets/h
    Power 16 Hp 16 Hp 17 Hp 17 Hp
    Machine Length 12.5 m 12.5 m 12.5 m 12.5 m
    Machine Weight: 6 Tons 6.5 Tons 7 Tons 7.5 Tons
