Product Description
Producător: PAMA

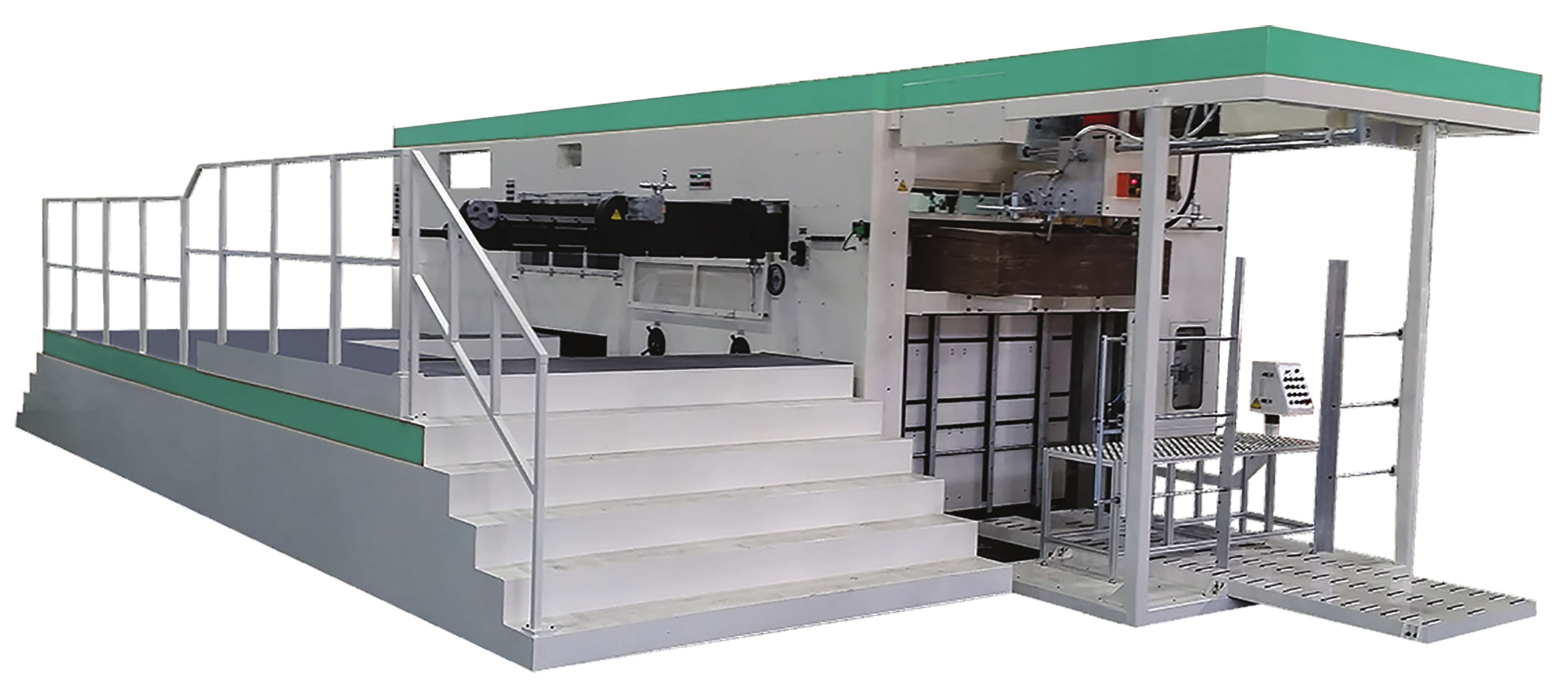

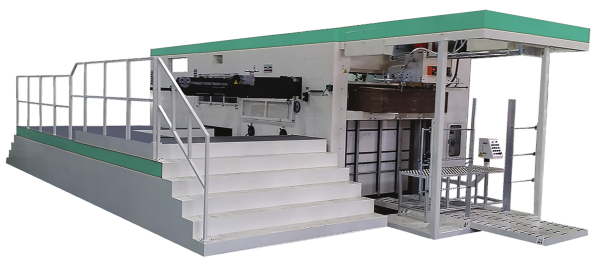

Model: ALPES HD – Semi Automatic
| SPECIFICATIONS |
HD-131/132 |
HD-151/152 |
HD-171/172 |
HD-181/182 |
HD-191/192 |
HD-211/212 |
HD-221/222 |
HD-251/252 |
HD-261/262 |
| Maximum Sheet Size |
1000 x 1320mm |
1100 x 1520mm |
1200 x 1720mm |
1200 x 1820mm |
1300 x 1920mm |
1500 x 2120mm |
1700 x 2220mm |
1700 x 2520mm |
1700 x 2620mm |
| Minimum Sheet Size |
400 x 500mm |
400 x 500mm |
400 x 500mm |
400 x 500mm |
650 x 960mm |
750 x 1060mm |
850 x 1110mm |
850 x 1260mm |
850 x 1300mm |
| Maximum Cutting Size |
980 x 1300mm |
1080 x 1500mm |
1180 x 1700mm |
1180 x 1800mm |
1380 x 1900mm |
1480 x 2100mm |
1680 x 2200mm |
1680 x 2500mm |
1680 x 2500mm |
| Gripper Margin |
10-15mm |
10-15mm |
10-15mm |
10-15mm |
10-15mm |
10-20mm |
10-20mm |
10-20mm |
10-20mm |
| Maximum Pressure |
350 tons |
350 tons |
400 tons |
400 tons |
450 tons |
500 tons |
500 tons |
500 tons |
500 tons |
| Table Stroke |
75 mm |
75 mm |
75 mm |
75 mm |
95 mm |
95 mm |
95 mm |
95 mm |
95 mm |
| Sheet Thickness |
Within 12 mm – Corrugated, within 3 mm – Board |
|
| Maximum Cutting Speed |
3700 Sheets/h |
3700 Sheets/h |
3600 Sheets/h |
3600 Sheets/h |
2800 Sheets/h |
2600 Sheets/h |
2500 Sheets/h |
1800 Sheets/h |
1800 Sheets/h |
| Total Weight |
16Tons / 18Tons |
17Tons / 19Tons |
19Tons / 22Tons |
20Tons / 23Tons |
27Tons / 30Tons |
32Tons / 35Tons |
48Tons/ 54Tons |
50Tons / 56Tons |
52Tons / 59Tons |
| Required Power |
9.2kW / 14kW |
12kW / 14kW |
13kW / 18kW |
13kW / 18kW |
19KkW / 24kW |
22kW / 29kW |
42kW / 52kW |
42kW / 52kW |
42kW / 52kW |
| Also available: |
Retractable Feeder, Batch Delivery, High Piles (300mm), Heating device |
